Adaptive Physical Communication System (APCS)

Adaptive Physical Communication logo

Adaptive Physical Communication System (APCS)

License: MIT Flutter 3.41 Dart 3.11 Platforms: Android, iOS and web No radio in the data path

Documentation · User guide · Installation · FAQ · Contributing · Changelog

APCS is an open-source Flutter app for offline, phone-to-phone file transfer using light and sound. It sends text, links, photos and short videos from one phone to another through an animated QR-code stream (screen to camera) or a data-over-sound modem (speaker to microphone), with no Internet, Wi-Fi, Bluetooth, NFC, mobile data or cloud anywhere in the data path. A third channel, vibration, is experimental and doesn’t work reliably yet.

It is a Flutter app (Dart) for Android, iOS and Chrome (web). Behind the simple Send/Receive screens sit a rateless fountain code, a camera-tuned QR pipeline, a multi-tone FSK modem with Reed-Solomon error correction, a reliable packet transport, and an adaptive channel-selection engine that runs in the Simulation Lab and developer tools. In the everyday Send/Receive screens you choose the channel yourself; the app doesn’t switch channels automatically there.

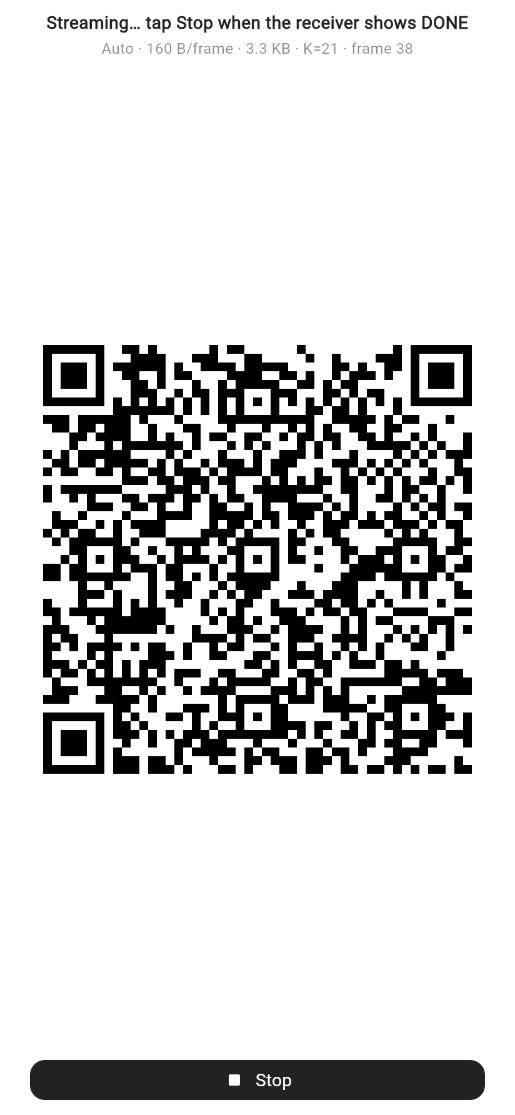

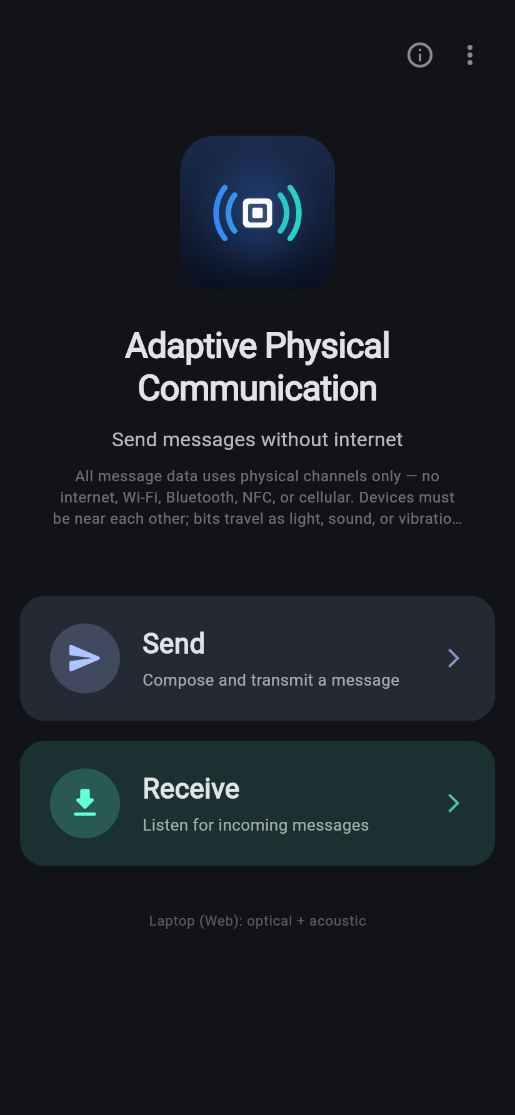

Home screen with Send and Receive buttons Sender streaming an animated QR code over Light Receiver listening over Sound, with the Hearing now frequency readout and level meters

Home screen, sending over Light, and receiving over Sound (web build in a phone-sized window).

This README is the complete technical manual. It explains what every part does, how it works, the exact numbers it uses, and how those numbers were derived. If you only want to use the app, start with the User Guide. The documentation set splits the same material by topic and adds byte-level examples, derivations and developer references.

Contents

  1. At a glance
  2. Features
  3. Quick start
  4. Using the app
  5. Showcase and demo guide
  6. System architecture
  7. Data formats shared by all channels
  8. The fountain code (LT code)
  9. Light channel: animated fountain QR
  10. Sound channel: multi-tone FSK + Reed-Solomon + fountain
  11. Vibration channel
  12. Legacy modems kept for reuse
  13. Reliable transport, state machine and adaptive engine
  14. Simulation lab and performance comparison
  15. Media: compression, demo samples, explainer videos, Gallery
  16. User interface
  17. Platforms, permissions and dependencies
  18. Testing and verification
  19. Transfer-time planning tables
  20. Known limitations and honest caveats
  21. Troubleshooting
  22. Project structure
  23. Glossary
  24. References

Also: Contributing · Security · Citing this project · Acknowledgements · Author · License

1. At a glance

  Light (fountain QR) Sound (MT-FSK fountain) Vibration
Status Working Working Experimental: unreliable on real phones
Transmitter Screen, full brightness Speaker Vibration motor
Receiver Camera, 1.5× zoom Microphone, 44.1 kHz Accelerometer
Topology One-to-many broadcast One-to-many broadcast One-to-one, phones touching
Recommended range 15–25 cm Across a table (≈0.3–2 m, estimated) Contact
Payload rate ≈1.3–2.5 KB/s (estimated from the camera simulator) Nominal: 11 / 18 / 27 / 36 B/s (Rugged / Safe / Standard / Fast); inaudible 3.4 / 5.0 B/s (Silent Robust / Silent) ≈0.5 B/s (nominal)
Max message 8 MiB (practical: < 200 KB) 8 KiB direct (practical: ≤ 2 KB) Short text
Error handling Rateless LT fountain + CRC-32 per frame Reed-Solomon per frame (errors + erasures) + CRC-16 + LT fountain CRC-32 packets + ACK/retransmit
Best for Photos, video, files Short text, tiny images Not recommended yet

About these numbers. They come from the app’s own formulas and from headless simulations of a phone camera and a room, not from a study across many phones.

Cameras, speakers and microphones differ a lot between phones, so your results may be different. See Performance for how each number is derived, and section 20 for what hasn’t been verified on devices.

Core ideas in one line each:

Quick answers

What is APCS? APCS (Adaptive Physical Communication System) is a free, MIT-licensed Flutter app that transfers files between two nearby phones using only light and sound. The sender shows animated QR codes or plays tones, and the receiver reads them with its camera or microphone.

Can I send files between phones without Internet, Wi-Fi or Bluetooth? Yes. APCS sends data through the screen and camera (Light) or the speaker and microphone (Sound). No radio is used in the data path, and the Android release build doesn’t request the Internet permission.

How fast is APCS? Light is estimated at about 1.3–2.5 KB/s, based on the camera simulator. That’s enough for photos and short videos. Sound runs at a nominal 11–36 bytes per second (3.4–5.0 B/s on the inaudible Silent band), so it suits short text and links. See Performance.

Can one phone send to several phones at once? Yes. Light and Sound are one-to-many broadcasts: any number of receivers can read the same QR stream or listen to the same tones, and each finishes on its own.

How does APCS cope with missed frames and noise? APCS uses a rateless LT fountain code, so a receiver needs any K good frames, not particular ones. Sound frames also carry Reed-Solomon error correction with erasure decoding, and every frame has a CRC check.

Is APCS encrypted? No. Anyone nearby can see the QR codes or hear the tones, so don’t send secrets. See the security policy.

Which platforms does APCS support? Android and iOS support Light and Sound, plus experimental Vibration. Chrome on a laptop supports Light (via the webcam) and Sound.

More questions are answered in the FAQ.

2. Features

Messaging

Light channel

Sound channel

Vibration channel (experimental)

Engineering features

3. Quick start

Prerequisites

Run

git clone https://github.com/harsharaj-s/adaptive-physical-communication-system.git
cd adaptive-physical-communication-system
flutter pub get
flutter test                 # full test suite (101 tests)
flutter run                  # on a connected Android/iOS phone (all channels)
flutter run -d chrome        # web: Light + Sound via webcam, speaker and mic

Build a release APK

flutter build apk --release
# → build/app/outputs/flutter-apk/app-release.apk

Install the same build on both phones. The Light frame format is versioned (APCF v3) and older builds are rejected on purpose.

Windows note: if Gradle fails with “Connection timed out” while downloading its distribution, point it at your normal cache first: $env:GRADLE_USER_HOME = "$env:USERPROFILE\.gradle"; flutter build apk --release

4. Using the app

Sending

  1. Home → Send.
  2. Type a message or link, or tap Image, Video, Link or Demo samples.
  3. Continue to send, then choose Light, Sound or Vibrate.
  4. Adjust the channel options:
    • Light: “QR density” (Auto recommended). The line under the preview shows size, bytes per frame and estimated time.
    • Sound: a “Sound band” switch (Audible / Silent), speed chips for that band (each showing bytes per second), the Frame to be sent card and an estimate.
    • Vibrate (experimental): phones must touch. Transfers often fail; use Light or Sound instead.
  5. Tap Show QR & send, Play & send or Start vibration.
  6. Light and Sound stream until you stop them. Tap Stop once the receiver shows DONE, or Resume streaming if it hasn’t finished.

Receiving

  1. Home → Receive, then pick the same channel as the sender.
  2. Light: hold the phone 15–25 cm from the sender’s screen with the whole QR inside the corner brackets. Tap the preview to refocus and use 2× if the QR looks small. The HUD goes SCAN → LOCK → DONE.

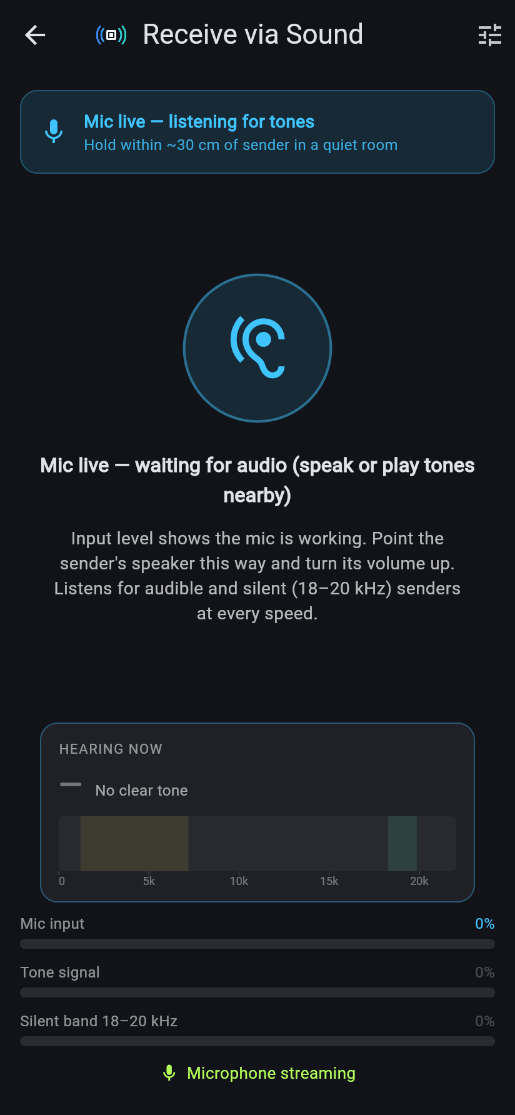

  3. Sound: allow the microphone. Hearing now shows the frequency the microphone picks up. The card shows “Receiving over sound · <profile>”, blocks recovered and damaged frames.
  4. Vibrate (experimental): press the phones together firmly. Don’t expect the message to arrive every time.
  5. The message appears in a card. Photos and videos are saved to the Gallery (album Adaptive Comm). Clear & keep listening gets ready for the next message.

5. Showcase and demo guide

A recipe that works reliably in front of an audience:

  1. Install the same APK on both phones. Turn on auto-brightness or maximum brightness and turn the volume up.
  2. Light demo (recommended):
    • Sender: Send → Demo samples → Speed of light (78 KB narrated video) or a 5–20 KB photo → Light → density Auto → Show QR & send.
    • Receiver: Receive → Light. Hold 15–25 cm away, QR inside the brackets, elbows resting on the table. Watch LOCK and the symbol count climb.
    • A 5 KB photo finishes in about 3–5 s; a 78 KB video in about 40 s.
    • When the receiver shows DONE the video plays with sound and is in the Gallery. Tap Stop on the sender.
  3. Sound demo: send a short text such as “Hello from sound!” (24-byte envelope, one block) on Standard, speaker facing the receiver’s microphone. It takes about 10 s. In a noisy hall use Rugged; the receiver follows automatically.
  4. If a transfer stalls: nothing is lost. Re-aim (Light) or move closer (Sound). The receiver keeps its progress; the sender can Resume streaming.
  5. Explain while it runs: point at the HUD. NEW counts useful symbols, DUP repeated ones, DEC successful QR reads per second. The file completes once it has about as many useful symbols as it has pieces.

6. System architecture

┌────────────────────────────── Flutter UI ──────────────────────────────┐
│ Home → SendCompose → ModePicker → SendTransmit     Home → Receive      │
│ Dev tools: Simulation Lab · Hardware · Legacy Messages · Performance   │
└───────────────────────────────┬────────────────────────────────────────┘
                                │ ListenableBuilder / AppProvider
┌───────────────────────────────▼────────────────────────────────────────┐
│ AppController (ChangeNotifier) — mode, role, chat store, 80 ms RX poll │
└───────┬───────────────────────────┬───────────────────────┬────────────┘
        │ direct envelope path      │ protocol path          │ simulation
┌───────▼─────────────┐   ┌─────────▼──────────┐   ┌─────────▼───────────┐
│ FountainQrModem     │   │ TransferManager    │   │ SimulationOrchestr. │
│ AcousticFountainMdm │   │  + StateMachine    │   │  9 scenarios        │
│ (rateless, no ACK)  │   │  + ReliableTransp. │   │  + AdaptiveEngine   │
└───────┬─────────────┘   └─────────┬──────────┘   └─────────┬───────────┘
        │                           │ ChannelManager          │
┌───────▼───────────────────────────▼─────────────────────────▼───────────┐
│ HardwareOpticalChannel │ HardwareAcousticChannel │ HardwareVibration    │
│ SimulatedCommChannel ×3 (VirtualLink over SimulatedMedium)              │
└───────┬───────────────────────────┬─────────────────────────┬───────────┘
   screen / camera           speaker / microphone     motor / accelerometer

Layers

Layer Location Responsibility
App shell lib/main.dart MaterialApp, dark Material 3 theme, AppProvider, full-screen QR overlay above every route
Application lib/application/app_controller.dart Single hub: simulation, hardware, chat list, send/receive flows, receive polling
Chat lib/core/chat/ ChatMessage model, APCM envelope codec
Physical modems lib/core/physical/ Fountain QR, LT code, MT-FSK, Reed-Solomon, sync, legacy codecs
Channels lib/core/channels/ CommChannel interface plus hardware and simulated implementations
Transfer lib/core/manager/ TransferManager, TransferStateMachine, ChannelManager
Transport / protocol lib/core/transport/, lib/core/protocol/ Fragmentation, ACK/NACK, retransmission; 24-byte header + CRC-32
Decision lib/core/engine/ Metric normalisation, weighted score, degradation and hysteresis
Simulation lib/core/simulation/ Medium model, virtual links, scenarios, orchestrator
Media / platform lib/core/media/, lib/core/platform/ Compression, samples, Gallery, capability detection, UI state notifiers, brightness

Two ways data travels

Direct envelope path (Light and Sound, the normal case). The whole message is packed into one APCM envelope and handed to a rateless fountain modem. There are no packets, no ACKs and no fragmentation layer. This is what makes one-to-many broadcast possible and what makes lost frames harmless.

Protocol path (Vibration, and Sound messages over 8 KiB). The envelope is split into packets with a 24-byte header and CRC-32, sent through ReliableTransport with a sliding window, and ACKed in one-to-one mode.

Send flow

SendComposeScreen ─► ComposePayload ─► ModePicker ─► SendTransmitScreen
  └─► AppController.sendPhysicalMessage(payload, channel)
        ├─ images: compressImageForTransfer()  (≤120 KB JPEG)
        ├─ envelope = ChatPayloadCodec.encode(type, data, fileName, mime)
        ├─ Light            → HardwareOpticalChannel.transmitEnvelope → FountainQrModem.transmit
        ├─ Sound ≤ 8192 B   → HardwareAcousticChannel.transmitEnvelope → AcousticFountainModem.transmit
        └─ Vibration / big  → runHardwareTransfer → TransferManager → ReliableTransport → channel.transmit

Receive flow

ReceiveScreen ─► AppController.startListening(channel)   (only that channel's sensor is started)
  └─ every 80 ms: _pollHardwareReceiver()
        ├─ protocol packets → reassembly (1800 ms idle timer) → envelope
        └─ receiveEnvelopes() from the Light / Sound fountain modems
              └─► ChatPayloadCodec.decodeIncoming → chat list → ReceivedContentView
                    └─► GallerySaver.save (photos and videos)

7. Data formats shared by all channels

7.1 APCM chat envelope (lib/core/chat/chat_payload_codec.dart)

Every message, whatever the channel, is first packed into this envelope:

Offset Size Field
0 4 Magic 41 50 43 4D = "APCM"
4 1 Type: text 0, image 1, video 2, file 3, link 4
5 1 nameLen
6 nameLen File name (UTF-8)
6+nameLen 1 mimeLen
7+nameLen mimeLen MIME type (UTF-8)
7+nameLen+mimeLen rest Raw content bytes, running to the end of the envelope

7.2 Protocol packet (lib/core/protocol/packet_codec.dart)

Used by Vibration, oversized Sound messages and the simulation. The fields are little-endian.

Offset Size Field
0 1 Protocol version (= 1)
1 4 sessionId
5 4 transferId
9 1 packetType (discovery 0 … data 5, ack 6, nack 7, retransmissionRequest 8, channelSwitchRequest 9, channelSwitchAck 10, heartbeat 11, transferStatus 12, transferComplete 13, error 14)
10 1 channelId (optical 1, acoustic 2, vibration 3)
11 4 sequenceNumber (data starts at 1)
15 2 payloadLength
17 2 totalPackets (0 = unknown)
19 5 reserved (zero)
24 N payload
24+N 4 CRC-32 over bytes 0…23+N

The per-packet overhead is 28 bytes.

Payload size per packet (MTU):

Context Optical Acoustic Vibration
Hardware 1400 B 512 B 48 B
Simulation 256 B 256 B 256 B

7.3 Checksums

Checksum Parameters Used by
CRC-32 (IEEE) Reflected polynomial 0xEDB88320, init 0xFFFFFFFF, final XOR 0xFFFFFFFF Packets, Light frames, envelope de-duplication, session IDs
CRC-16/CCITT-FALSE Polynomial 0x1021, init 0xFFFF, MSB-first, no reflection, no final XOR Sound frames

8. The fountain code (LT code)

lib/core/physical/fountain/lt_codec.dart. Shared by the Light and Sound channels.

8.1 Why a fountain code

A screen or speaker cannot hear back from the receivers. With a normal “send each piece once” scheme, any lost piece means waiting for a full repeat cycle. A fountain code instead produces an endless stream of encoded symbols, each a combination of the original pieces. Any K plus a few of them are enough to rebuild the file. Nothing needs to be retransmitted and every receiver finishes as soon as it has enough, regardless of which frames it missed.

8.2 Splitting the file

K        = ceil(fileLen / blockLen)        (K = 1 for an empty file)
block[i] = bytes [i·blockLen, (i+1)·blockLen), the last block zero-padded

fileLen travels in every frame header, so the padding is removed on reassembly.

8.3 Encoding symbol i

The code is systematic: symbols 0…K−1 are the original blocks, sent first. Symbols K, K+1, … are repair symbols. Each is the XOR of a set of blocks called its neighbours:

symbol(i) = block[i]                                  if i < K
symbol(i) = XOR of block[n] for n in neighbours(i)    if i ≥ K

The neighbour set is computed from (sessionId, i, K) alone, so sender and receiver regenerate it independently and no neighbour list is transmitted. There are three regimes:

K Neighbour rule Why
1 always {0} trivial
2 – 8 (small K) cycle through all 2ᴷ−1 non-empty subsets in a session-keyed shuffled order no equation repeats within a cycle
9 – 256 (dense) uniformly random non-empty subset (each block included with p = ½) K+m symbols are full rank with probability ≥ 1 − 2⁻ᵐ
> 256 (sparse) fixed weight d = min(K/2, ceil(2·ln K) + 8) random blocks keeps XOR cost low for big files

Small-K guarantee. A proper subspace of GF(2)ᴷ has dimension at most K−1, so it holds at most 2ᴷ⁻¹−1 non-zero vectors. Any 2ᴷ⁻¹ distinct non-zero subsets therefore span everything:

Dense-regime guarantee. For a random binary K×(K+m) matrix, the probability that it is not full rank is at most Σ over proper subspaces, roughly 2⁻ᵐ. Two extra symbols give ≥ 75%, and seven give ≥ 99%.

Sparse regime. The weight 2·ln K + 8 leaves about K⁻¹·e⁻⁸ blocks uncovered after K symbols. Examples: K = 257 → weight 20; K = 1133 → 23.

Why not the classic robust-soliton distribution? At small K it puts about 47% of symbols on the same “all blocks” equation. Measured with the old code, only 56% of random K+2 symbol sets (K = 1…10) were full rank, and a 3-block transfer finished with five distinct repair symbols just 69% of the time. That was the “stuck at 1 / 3 symbols” field bug. The new design fixes it.

8.4 Pseudo-random generator (identical on phone and web)

imul(a,b)   exact 32-bit multiply (web-safe)
fmix32(h)   MurmurHash3 finaliser: h^=h>>16; h*=0x85EBCA6B; h^=h>>13; h*=0xC2B2AE35; h^=h>>16
mix(sid,i)  fmix32(sid ^ fmix32(i + 0x632BE5AB))
rng.next32  counter++ ; fmix32(seed + counter·0x9E3779B9)      (counter-mode, stateless per symbol)

8.5 Decoder: incremental Gauss–Jordan over GF(2)

Each received symbol is an equation (bitmask of neighbours, payload). The decoder keeps the equations in reduced row-echelon form:

  1. Reject it if the payload length is wrong, the index was already seen (DUP), or the file is already complete (RED).
  2. Reduce: XOR in every existing pivot row whose pivot bit is set in the new mask. One pass suffices, because pivot rows only contain free columns besides their own pivot.
  3. If nothing is left, the equation was linearly dependent (RED).
  4. Otherwise take the lowest set bit p as a new pivot and back-eliminate it from every existing row that contains p. Store the row. This counts as NEW.
  5. A row with a single bit is a solved block.

Completion: rank == K. Progress = rank / K.

Because the decoder is exact (it finds a solution whenever one exists), the measured overhead across K = 1…600 at 40% frame loss is a mean of 0–2.2 extra symbols with a 95th percentile ≤ 6 (test/lt_small_k_test.dart).

9. Light channel: animated fountain QR

Main files:

Area Files
Modem lib/core/physical/fountain/fountain_qr_modem.dart
Frame format qr_fountain_frame.dart
QR bitmap qr_bitmap.dart
Profiles and metrics lib/core/physical/optical_tx_profile.dart
Receive pipeline qr_gray_frame.dart, qr_decode_worker.dart, qr_frame_decoder.dart
Camera channel lib/core/channels/hardware_optical_channel.dart
UI lib/ui/widgets/qr_bitmap_view.dart, optical_fountain_qr_overlay.dart, optical_transfer_hud.dart, optical_aim_guide.dart

9.1 Pipeline

APCM envelope ─► LT encoder ─► APCF v3 frame (26 B overhead + CRC-32) ─► QR byte mode, EC-L, mask 0
   ─► pixel-snapped QR on a white full-screen overlay at max brightness, 12 frames/s
                     ~~~~~~~~~~~~~~~~~~~~~~~~~~~ light ~~~~~~~~~~~~~~~~~~~~~~~~~~~
camera (720p, 1.5× zoom, −0.7 EV) ─► Y-plane centre square ─► decode isolate (zxing2)
   ─► APCF parse + CRC ─► LT decoder (per session) ─► APCM envelope ─► display + Gallery

9.2 APCF v3 frame

Big-endian, qr_fountain_frame.dart:

Offset Size Field
0 4 Magic "APCF"
4 1 Version = 3 (v3 changed the LT mapping, so v2 frames are rejected)
5 1 Flags (bit 0 = gzip, reserved and currently never set)
6 4 sessionId
10 4 symbolIndex
14 2 K
16 2 blockLen
18 4 fileLen
22 blockLen LT symbol payload
22+blockLen 4 CRC-32 of everything before it

9.3 QR generation

blockLen Framed bytes QR version Modules per side (4v+17)
160 186 8 49
240 266 10 57
330 356 12 65
600 626 17 85
800 (old default) 826 20 97

9.4 Why sparse codes: the pixels-per-module argument

The receiver’s camera frame is 1280×720, and the decoder takes a centred square of 0.98 × 720 ≈ 706 px. Suppose the sender’s QR fills half of that square (the “typical” hand-held case):

QR v8  (49 + 8 quiet = 57 modules) :  353 px / 57  ≈ 6.2 px per module   → reads reliably
QR v12 (65 + 8       = 73 modules) :  353 px / 73  ≈ 4.8 px per module   → usually reads
QR v20 (97 + 8       = 105 modules):  353 px / 105 ≈ 3.4 px per module   → blur ruins it

With a little defocus and hand shake (σ ≈ 1 px blur plus 1 px motion), anything under about 4 px per module becomes a grey smear. The 1.5× zoom crops the sensor before it is downscaled to 720p, so it adds real resolution: the same code covers 1.5× more pixels, and the user can hold the phone back at 15–25 cm where every phone camera can focus.

9.5 Measured decode rates: the camera simulator

test/optical_camera_sim.dart renders each QR frame the way a phone camera sees another phone’s screen. For every frame it draws a new random pose:

Tier QR share of view Rotation Skew Blur σ Motion blur Black / White level Gamma Noise σ Glare
good 62% ±4° 3% 0.7 px 0 35 / 220 0.9 3 0
typical 50% ±8° 6% 1.1 px 1 px 60 / 205 0.8 6 0.1
hard 42% ±12° 8% 1.5 px 2 px 80 / 195 0.7 8 0.2

Per-frame decode rate with the production decoder (test/optical_density_sweep_test.dart):

Block QR good typical hard
160 B v8 100% 100% 63%
240 B v10 100% 94% 13%
330 B v12 100% 81% 0%
600 B v17 100% 31% 0%
800 B v20 100% 13% 0%
1200 B v25 81% 0% 0%

The “typical” row matches a real field report of the old 800-byte default: DEC 2.0/s from CAP 18 fps, which is about 11%.

One-factor-at-a-time runs showed that sharpness (focus and shake) matters most, then how much of the frame the code fills, then noise. Contrast barely matters. That is why the design uses sparse codes, zoom, centre focus with tap-to-refocus, and slightly under-exposed capture (shorter exposure means less blur).

9.6 Profiles and Auto density

Profile Frames/s Bytes/frame QR Nominal rate Use when
Auto (default) 12 160 / 240 / 330 v8 / v10 / v12 1.9–4.0 KB/s always, unless there’s a reason not to
Safe 8 160 v8 1.28 KB/s far, shaky, washed-out screen
Standard 12 330 v12 3.96 KB/s steady hands
Fast 12 600 v17 7.20 KB/s tripod-steady, close, good light

The Auto rule (resolveFor) picks the sparsest block size that keeps K ≤ 48 symbols (about a five-second transfer); otherwise it uses 330:

envelope ≤  7 680 B → 160 B/frame (v8)
envelope ≤ 11 520 B → 240 B/frame (v10)
otherwise           → 330 B/frame (v12)

Why 12 fps at most: each code must stay on screen for at least two camera exposures (about 66 ms at 30 fps capture). Faster display only guarantees that the camera catches codes mid-swap, which decode as nothing.

9.7 Transfer-time estimate

p      = profile.resolveFor(bytes)
K      = ceil(bytes / p.blockLen)
yield  = 0.70 (≤160 B) | 0.65 (≤240 B) | 0.55 (≤330 B) | 0.35 (larger)   ← expected decoded fraction of shown frames
ETA_s  = ceil( (K + 2) / (p.txFps · yield) )

The yield values are the simulated decode rates, discounted for frames that straddle a display refresh. Worked examples:

Payload Profile → block K Symbols/s = fps × yield ETA
2 000 B text/file Auto → 160 13 12 × 0.70 = 8.4 ⌈15 / 8.4⌉ = 2 s
5 KB photo (≈5 130 B envelope) Auto → 160 33 8.4 ⌈35 / 8.4⌉ = 5 s
10 KB photo Auto → 240 43 7.8 6 s
78 KB video (80 014 B) Auto → 330 243 6.6 ⌈245 / 6.6⌉ = 38 s
136 KB video (139 179 B) Auto → 330 422 6.6 ⌈424 / 6.6⌉ = 65 s
120 KB photo (max) Auto → 330 373 6.6 57 s

9.8 Transmitter loop

frameMs  = max(40, round(1000 / txFps))          → 83 ms at 12 fps, 125 ms at 8 fps
first frame held frameMs + 250 ms                  (gives the receiver time to autofocus)
loop:  show symbol i ─► build symbol i+1 while i is on screen ─► sleep the remainder ─► i++

9.9 Receiver pipeline

Camera (HardwareOpticalChannel):

Gray frame (extractQrGrayFrame, runs synchronously in the camera callback):

Decode worker (QrDecodeWorker):

zxing2 decode sequence (first success wins):

# Binarizer Hints Purpose
1 GlobalHistogramBinarizer QR only fastest; beat the hybrid binarizer in almost every sweep cell
2 same bitmap pureBarcode random payload bytes sometimes form fake 1:1:3:1:1 finder patterns that outrank the real corners. This pass reads the grid from the black bounding box instead and rescued 100% of those frames (finder-only detection loses 3–8%)
3 HybridBinarizer QR only uneven lighting

tryHarder is deliberately off: it’s cheaper to drop a frame and take the next symbol.

Ingest:

9.10 HUD metrics

Field Meaning Formula
SCAN / LOCK / DONE no session yet / decoding a session / file complete
CAP camera frames per second captures ÷ window (≈500 ms windows)
DEC QR codes read per second successful zxing reads ÷ window
DROP frames rejected by a busy worker
GOOD goodput useful symbols × blockLen ÷ elapsed (on completion: fileLen ÷ elapsed)
NEW / DUP / RED useful / repeated index / linearly dependent symbols LT decoder counters
x / K symbols progress rank / K
amber hint “No codes readable — whole QR inside the square…” shown when not complete, CAP > 2 and 4 consecutive windows (≈2 s) have had no decode

9.11 Verified end-to-end results (simulation)

Test Result
2 KB file, Auto, “typical” camera, 30% of frames lost completes after ≈22 frames shown (≈1.8–2.3 s of streaming)
2 KB file, “hard” camera at 1.5× zoom completes after ≈23 frames (≈1.9–3.7 s)
Old 800-byte density, “hard” camera 0 frames decoded in 20 s
40 KB photo / 30 KB video through real QR + real zxing + real LT, 30% loss recovered byte-exact
Production decoder on perfect renders < 1% frame loss per profile

10. Sound channel: multi-tone FSK + Reed-Solomon + fountain

Main files:

Area Files
Modem and codecs lib/core/physical/acoustic/: mt_fsk_codec.dart, acoustic_frame_sync.dart, acoustic_fountain_frame.dart, reed_solomon.dart, acoustic_fountain_modem.dart, acoustic_tx_profile.dart, biquad_filter.dart, tone_timeline.dart, spectrum_analyzer.dart
Channel lib/core/channels/hardware_channels.dart
UI lib/ui/widgets/acoustic_transfer_hud.dart, lib/ui/widgets/live_tone_meter.dart, lib/core/platform/acoustic_spectrum_state.dart

10.1 Pipeline

TX: APCM ─► LT symbols (blockLen) ─► 9 B header + payload + CRC-16 ─► + RS parity
        ─► MT-FSK waveform: 2-frame sync marker + data symbols ─► PCM16 WAV ─► speaker
RX: mic PCM16 44.1 kHz ─► float ─► frame sync (one per profile) ─► Goertzel demod (+ soft confidence)
        ─► RS decode (plain, then GMD erasure retries) ─► CRC-16 ─► LT decoder ─► APCM

10.2 Multi-tone FSK waveform

Constant Value
Sample rate f_s 44 100 Hz
Analysis frame N 1024 samples (23.22 ms)
Tone spacing = one frequency bin f_s / N = 43.066 Hz
Data tones bin = 40 + 16·g + v (group g, value v = 0…15)
Sync tones bin 28 (1205.9 Hz) and bin 36 (1550.4 Hz)
Tones per group 16, so 4 bits per group per symbol
Groups G 6 or 8 → 24 or 32 bits = 3 or 4 bytes per symbol
Symbol length F × 1024 samples (F = 3…6 frames)

Band plan:

Group Bins Frequencies
0 40–55 1722.7 – 2368.7 Hz
1 56–71 2411.7 – 3057.7 Hz
2 72–87 3100.8 – 3746.8 Hz
3 88–103 3789.8 – 4435.8 Hz
4 104–119 4478.9 – 5124.9 Hz
5 120–135 5168.0 – 5814.0 Hz
6 (8-group profiles) 136–151 5857.0 – 6503.0 Hz
7 (8-group profiles) 152–167 6546.1 – 7192.1 Hz

Why these choices:

10.3 Demodulation: Goertzel with soft decisions

For each of the 16·G tones, the Goertzel algorithm computes the power at that exact bin over the whole symbol (F·1024 samples):

coeff = 2·cos(2π·bin / N)
s(n)  = x(n) + coeff·s(n−1) − s(n−2)
power = (s1² + s2² − coeff·s1·s2) / length

Goertzel costs O(length) per tone and needs no FFT, which is cheaper than an FFT when only 96–128 of 512 bins matter.

10.4 Synchronisation

Every frame begins with a marker: both sync tones together for 2 frames (2048 samples, 46.4 ms).

Marker score (markerScore): split the 2048-sample window into two halves. For each half compute

score_half = 2 · min(P₂₈, P₃₆) / E        (P = Goertzel power, E = mean square energy)

and take the minimum of the two halves. For an ideal aligned marker with tones of amplitude A:

P = A²·N/4,  E = A²/2 + A²/2 = A²   ⇒   score = 2·(A²N/4)/A² = N/2 = 512

Unrelated audio scores in the tens, so the lock threshold is 8.0. Requiring both halves prevents a window holding only the back half of a marker plus silence from scoring as well as an aligned one. That bug used to lock every frame one frame early.

Finding the frame (AcousticFrameSync):

  1. Scan in 64-sample steps (1.45 ms) until the score reaches 8.0.
  2. Leading edge, not the peak: within the next 2048 samples, find the peak score and take the first probe reaching 50% of it. A reflection can be louder than the direct sound, but the direct sound always arrives first.
  3. Data starts at marker + 2048. Wait until the whole frame is buffered.
  4. Fine alignment: try offsets of ±min(symbolSamples/8, 512) in 64-sample steps and keep the one that maximises tone separation on the first symbol (3 groups).
  5. Demodulate the codeword, decode it, and advance past the frame.

Automatic profile detection: the four audible profiles share one marker, and the two Silent profiles share another (bins 424 and 427, played one after the other instead of together; high-passed at 16 kHz before scoring). The receiver runs one frame-sync per profile in parallel, six in total, and the first profile whose frame survives Reed-Solomon, the CRC and the header’s blockLen check becomes the lock. After 4 markers with no good frame the lock is declared stale and all profiles are heard again. After each message the receiver reopens to every profile, because the next sender might pick another speed.

10.5 Acoustic frame format

Big-endian, acoustic_fountain_frame.dart:

Offset Size Field
0 2 symbolIndex
2 2 K
4 1 blockLen (also used to confirm the profile)
5 3 fileLen (u24, up to 16 MiB)
8 1 sessionId ((ms since epoch / 97) & 0xFF)
9 L LT symbol payload
9+L 2 CRC-16/CCITT-FALSE over bytes 0…8+L
11+L P Reed-Solomon parity

Codeword length is 11 + L + P bytes. There is no interleaver: Reed-Solomon handles bursts of up to P/2 bytes directly (a 12-byte burst is tested).

10.6 Reed-Solomon error correction

reed_solomon.dart:

Decoding (errors only):

  1. Syndromes Sᵢ = c(αⁱ). All zero means the codeword is clean.
  2. Berlekamp–Massey gives the error locator Λ(z).
  3. Chien search finds its roots, which are the error positions. The root count must equal the degree.
  4. Forney computes the magnitudes: eᵢ = Ω(Xᵢ⁻¹) / ∏_{j≠i}(1 − XⱼXᵢ⁻¹), where Ω = S·Λ mod z^P.
  5. Recompute the syndromes. They must all be zero.

Errors and erasures: Berlekamp–Massey is seeded with the erasure locator Γ(z) = ∏(1 − Xⱼz) over the known-bad positions. The decoder succeeds whenever

2·(unknown errors) + (erasures) ≤ P

An erasure costs one parity byte, while an unknown error costs two.

GMD (generalised minimum distance) retry:

  1. Try a plain decode first.
  2. If it fails, sort bytes by reliability (least sure first) and retry with the 4, 8, 12, … weakest bytes declared erased.
  3. Always keep 4 parity bytes in reserve for error detection.
  4. The CRC-16 vets anything the decoder accepts.

This let the hardest room test go from decoding nothing to passing.

Profile Codeword n Data k Parity P Errors only Erasures only GMD retries
Rugged 63 43 20 10 20 4, 8, 12, 16
Safe 83 59 24 12 24 4 … 20
Standard / Fast 99 75 24 12 24 4 … 20

10.7 Profiles and rate calculation

  Rugged Safe Standard Fast Silent Robust Silent
Band Audible Audible Audible Audible 18.3–19.9 kHz 18.3–19.9 kHz
Tone groups G 6 6 8 8 1 1
Frames per symbol F 6 4 4 3 3 (1 guard) 2 (1 guard)
Symbol length 139.3 ms 92.9 ms 92.9 ms 69.7 ms 69.7 ms 46.4 ms
Bits / symbol 24 24 32 32 4 4
Raw bit rate 172 b/s 258 b/s 345 b/s 459 b/s 57 b/s 86 b/s
Block L / parity P 32 / 20 48 / 24 64 / 24 64 / 24 24 / 16 24 / 16
Codeword 63 B 83 B 99 B 99 B 51 B 51 B
Data symbols 21 28 25 25 102 102
Frame time 2.972 s 2.647 s 2.368 s 1.788 s 7.152 s 4.783 s
Net payload rate 10.8 B/s 18.1 B/s 27.0 B/s 35.8 B/s 3.4 B/s 5.0 B/s
Hint loud room, metres apart background chatter normal room, across a table quiet room, phones touching inaudible, weak speaker or a loud crowd inaudible 18–20 kHz, phones within arm’s reach

The guard frame at the start of each Silent symbol is ignored by the demodulator, so echoes of the previous tone have died away before the decision.

Worked calculation, Standard:

bits/symbol     = 4 · G                        = 32          (4 bytes)
symbol samples  = F · N = 4 · 1024             = 4096        (92.88 ms)
codeword        = 11 + 64 + 24                 = 99 bytes
data symbols    = ceil(99 / 4)                 = 25
frame samples   = 2·1024 (marker) + 25·4096    = 104 448
frame time      = 104 448 / 44 100             = 2.3684 s
net rate        = 64 B / 2.3684 s              = 27.02 B/s

General formulas:

R_bits = 4·G·f_s / (N·F)                 raw bit rate
C      = 11 + L + P                      codeword bytes
S_d    = ceil(C / (G/2))                 data symbols per frame
T_f    = (2·N + S_d·N·F) / f_s           frame time
R_net  = L / T_f                         net payload bytes per second

Rugged gives up speed for robustness in three ways: longer symbols (more energy per decision, more tolerance to reverberation), only 6 groups (the high, most attenuated band is left out) and relatively more parity (P/L = 0.63 against 0.375).

10.8 Transmit loop

10.9 Receive loop

10.10 Room simulator and results

test/acoustic_channel_sim.dart processes the transmitted audio through clock drift (Catmull-Rom cubic resampling, optionally with hand wobble), multipath taps, a reverb tail (6 echoes spaced 35 ms apart), cascaded one-pole low-pass “speaker roll-off” stages (each about −3 dB at 3.1 kHz) and Gaussian noise at a target SNR:

Scenario SNR Reverb Roll-off stages Clock drift Multipath taps
easy 20 dB 0.15 0 0 ppm 0
room 12 dB 0.35 2 50 ppm 3
noisy room 6 dB 0.45 4 200 ppm 5
hostile 2 dB 0.55 6 (≈ −47 dB at 7.2 kHz) 400 ppm 7

Four near-ultrasonic scenarios test the Silent band: ultra desk, ultra hand (4 dB SNR plus 500 ppm hand wobble), chatter and crowd (three simulated talkers 6 dB and 15 dB louder than the tones). See Testing §4.2.

Verified in the tests:

11. Vibration channel

Status: experimental. This section describes how the channel is designed. The bit codec passes its unit tests, but on real phones vibration transfers usually fail or never finish. Likely causes are motor timing that differs between phones, accelerometer noise, and packets that take longer on air than the 20 s acknowledgement timeout (Known Issues §2.8). Don’t rely on it or demo it as a working feature.

Files: lib/core/channels/vibration_channel.dart, VibrationBitCodec in lib/core/physical/physical_codecs.dart.

Modulation: pulse-width keying.

Item Value
Bit 0 80 ms pulse
Bit 1 180 ms pulse
Gap 60 ms (+50 ms settle in the motor call) → real periods 190 / 290 ms
Preamble 0 1 0 1 0 1 1 0, then data MSB-first
Decision threshold pulse ≥ 130 ms → 1
Framing protocol packets (48-byte payload) with CRC-32, sent one-to-one

Receiver:

Motor: full-intensity pattern where supported, otherwise a plain duration vibrate, and a heavy haptic tick as the last resort.

Rate: about 240 ms per bit on average, which is ≈4.2 bit/s ≈ 0.5 B/s (nominal). Even when it works, it is only suitable for a few characters.

12. Legacy modems kept for reuse

These earlier modems remain in the codebase with their tests. The project rule is to extend, not overwrite. They are not selected by the current UI.

Modem How it works Rate / limits File
CSK light (colour-shift keying) 2×2 colour mosaic; each cell red/green/blue/white = 2 bits, so 1 byte per frame. Preamble 00 55 AA FF + u16 length. 140 ms per symbol + 20 ms black guard, 3 repeats ≈6 B/s, ≤ 180 B physical/csk/csk_optical_modem.dart, optical_csk_codec.dart
APCS1 text QR APCS1:<id>:<i>/<n>:<base64url> sequential chunks of ≤1400 B, 220 ms per frame superseded by fountain QR physical/qr_optical_codec.dart
Two-tone FSK 1800 Hz = 0, 3200 Hz = 1, 18 ms per bit, preamble 10101010, Goertzel detection, 180 ms lead silence, played 3× with 350 ms gaps 55.6 b/s ≈ 7 B/s, ≤ 900 B direct physical/physical_codecs.dart (FskCodec, FskStreamDecoder)
On/off light keying luminance > 0.5 = 1, 100 ms per bit test-only OpticalBitCodec

The new MT-FSK modem moves 27 B/s on Standard, about 4× the old FSK, with error correction and timing recovery the old one lacked.

13. Reliable transport, state machine and adaptive engine

13.1 Reliable transport (lib/core/transport/reliable_transport.dart)

Config ACK timeout Max retries Window
Simulation 500 ms 5 8 packets
Hardware 20 000 ms 8 4 packets

13.2 Transfer state machine (transfer_state_machine.dart)

idle → discovering → testingChannels → negotiating → transferring → completed
                                                        │    ▲
                                                        ▼    │
                                                     degraded ─► switchingChannel ─► recovering
(any state) ─► failed ;  completed / failed ─► idle

Illegal transitions throw StateError. History records every transition with its timestamp.

13.3 Adaptive decision engine (adaptive_decision_engine.dart)

Normalisation, all clamped to [0, 1]:

T = throughput / 25 000 bps      R = reliability (packets received / sent)
L = 1 − latency / 500 ms         C = confidence      S = stability

Score:

score = 0.35·T + 0.25·R + 0.15·L + 0.15·C + 0.10·S

Decisions:

Worked example (simulation defaults):

Channel (simulated defaults) T R L C S Score
Optical, healthy (18 kbps, 1% loss, 2 ms) 0.72 0.99 1.00 0.92 0.88 ≈0.87
Acoustic (9 kbps, 4% loss, 3 ms) 0.36 0.96 0.99 0.76 0.72 ≈0.70
Vibration (0.8 kbps, 6% loss, 120 ms) 0.03 0.94 0.76 0.70 0.68 ≈0.53
Optical after optical-degrades hits (2 kbps, 30% loss, 500 ms) 0.08 0.70 0.00 0.30 0.20 ≈0.27
Acoustic alternative in that scenario (9 kbps, 3% loss, 80 ms) 0.36 0.97 0.84 0.79 0.88 ≈0.70

Confidence in a test result is confidence × (1 − loss/2).

In the degraded case, optical is at 0.27, below 0.65, and acoustic is at about 0.70. The gap of 0.43 is at least 0.15, so the engine switches to acoustic.

In the live Send/Receive screens the user chooses the channel, so no adaptive switching happens there. Broadcast uses fixed preferences: optical, then acoustic.

14. Simulation lab and performance comparison

14.1 Medium model (simulated_medium.dart)

For every packet, in order:

  1. Loss: dropped with probability lossRate.
  2. Corruption: with probability corruptionRate, one payload byte is XORed with 0xFF. The CRC rejects the packet.
  3. Delay: latency ± 15 ms + len·8 / throughput · 1000 ms.

Degradation and recovery schedules swap the profile after N packets. VirtualLink wires endpoint A’s channels to endpoint B’s.

14.2 Scenarios

id What happens Data
optical-always-good Optical stays excellent 4 KB
acoustic-always-good Optical unavailable, acoustic stable 4 KB
optical-degrades (default) Optical collapses after 15 packets (2 kbps, 30% loss) → switch to acoustic 8 KB
random-loss 8% random loss on optical 4 KB
burst-loss 45% burst loss after packet 8 6 KB
both-degrade Optical and acoustic both degrade after packet 10 2 KB
acoustic-recovers Acoustic starts poor, recovers after packet 30 4 KB
repeated-degradation Optical degrades at packet 12 and recovers at 35 10 KB
vibration-coupled Only vibration usable 2 KB

Orchestrator flow: discover → test each channel (20 packets) → pick the best → transfer with reliable transport → re-evaluate every 20 iterations and switch if needed → verify the received bytes match. Run All Scenarios reports “N/9 scenarios passed”. It usually reports 7 of 9: optical-degrades and burst-loss fail because a transport bug stalls the transfer before the switch (Known Issues §3.2), and vibration-coupled passes but actually transfers over the simulated optical channel.

14.3 Performance comparison

Runs Adaptive (optical-degrades), Fixed Optical (8% loss) and Fixed Acoustic on 4 KB. It reports duration, throughput, goodput, packet loss, retransmissions and channel switches.

15.1 Photo compression (lib/core/media/image_compress.dart)

  1. Decode the photo (PNG, JPEG, GIF, WebP…) and resize so the long side is ≤ 960 px.
  2. Encode JPEG at q = 78. While it is over 120 KB and q > 40, lower q by 8 (78 → 70 → 62 → 54 → 46 → 38).
  3. If it is still too big, resize to 640 px and encode at q = 65.
  4. Output is always a displayable JPEG. Undecodable non-JPEG input shows a friendly error.

15.2 Built-in demo samples (assets/samples/)

Photos: robot lab, cat sketch, future city and night sky, each at 2, 5, 10 and 20 KB. They are baseline JPEGs sized by binary-searching quality and scale.

Videos, all with sound:

File Size Length Teaches
how_qr_codes_work_140kb.mp4 136 KB 27 s Bits as squares, finder patterns, error correction, fountain QR
how_sound_travels_150kb.mp4 145 KB 29 s Pressure waves; speed in air / water / steel; no sound in space
binary_numbers_130kb.mp4 124 KB 29 s Place values, 5 = 101, bytes, ‘A’ = 65
morse_code_130kb.mp4 129 KB 28 s Dots and dashes, SOS with real beeps and a flashing lamp
the_water_cycle_160kb.mp4 157 KB 26 s Evaporation → condensation → precipitation → collection
why_we_have_seasons_140kb.mp4 135 KB 27 s The 23.5° axial tilt, not distance
photosynthesis_140kb.mp4 137 KB 30 s Inputs, chlorophyll, outputs, equation
speed_of_light_80kb.webm 78 KB 24 s 299 792 km/s, sunlight takes about 8 min 20 s, lightning before thunder
countdown_beeps_30kb.mp4 22 KB 5 s Audio/video sync test pattern

The picker (Compose → Demo samples) reads the asset manifest automatically. Titles come from the file names; the _<N>kb suffix is the size budget and is enforced by test/sample_media_test.dart.

15.3 How the tiny videos are made (tool/)

Why they’re so small: 320×180 at 12 fps, mono speech-tuned audio at 10–20 kbps, calm synthetic motion, and two-pass rate control. For comparison, a normal phone video runs at more than 10 Mbps.

16. User interface

Home
 ├─ Send ─► Compose (text · Image · Video · Link · Demo samples)
 │            └─► Mode picker (Light · Sound · Vibrate) ─► Transmit screen
 ├─ Receive ─► Mode picker ─► Receive screen (camera / mic / accelerometer view + received card)
 └─ ⋮ Developer tools
      ├─ Simulation Lab      (scenario picker, two endpoint panels, live logs, Run All)
      ├─ Hardware Channels   (raw channel tests, role, camera preview)
      ├─ Legacy Messages     (chat-style transfer, Sim/Live, Broadcast/1:1)
      └─ Performance         (adaptive vs fixed strategies)

17. Platforms, permissions and dependencies

Platform support

Platform Light Sound Vibration
Android ✅ send and receive (brightness control, isolate decoder) ✅ ⚠️ Experimental, unreliable
iOS ✅ ✅ ⚠️ Experimental, unreliable (haptic fallback)
Chrome (web) ✅ webcam receive (canvas sampler, 640×640 centre patch) ✅ ❌

Permissions

Physical-only policy

lib/core/platform/platform_capabilities.dart lists the excluded transports (Internet/IP, Wi-Fi, Bluetooth, NFC, Cellular/SMS, Cloud) and test/physical_only_test.dart checks that exactly three physical channels exist.

Dependencies

Package Purpose
camera Receive camera stream and preview
qr QR matrix generation (byte mode)
zxing2 QR decoding (isolate and web)
record Microphone PCM16 stream
audioplayers Playing generated WAV tones
vibration, sensors_plus Motor pulses and accelerometer
permission_handler Runtime permissions
wakelock_plus Keep the screen on while streaming
image JPEG decode, resize and encode
file_picker Choosing photos, videos and files
video_player Playing received videos
gal Saving to the Gallery / Photos
path_provider Temporary files
url_launcher Opening received links
web Browser APIs for the web receiver

18. Testing and verification

flutter test                                    # everything (101 tests: 100 pass, 1 skipped)
flutter test test/optical_density_sweep_test.dart
OPTICAL_SWEEP=1 flutter test test/optical_density_sweep_test.dart   # print the full density table
flutter analyze                                 # static analysis (clean)
Test file What it proves
lt_codec_test.dart Systematic recovery with exactly K symbols; 30% erasures; duplicates ignored; APCF CRC and text/binary paths
lt_small_k_test.dart Decoder rank equals an independent GF(2) rank; K = 3 always completes from 5 repair symbols; overhead mean < 2.5, p95 ≤ 7 across K = 1…600
fountain_qr_roundtrip_test.dart Real QR render → rasterise → real zxing2 → LT: text, a 40 KB photo and a 30 KB video with 30% loss; QR versions ≤ 25; production decoder loss < 1%; hostile binary bytes
optical_density_sweep_test.dart Auto density thresholds; decode-rate floors in the “typical” camera; 2 KB completes with 30% loss and at “hard ×1.5”; the old 800 B default < 50%
fountain_benchmark_test.dart 365 KB (K = 1133) recovers at 20% loss; decoder > 40 KB/s; profile ladder
acoustic_channel_test.dart Profile rates and geometry; every audible profile through “room”; Safe through “noisy”; Rugged through “hostile”; Silent tones stay in 18–20 kHz with under −40 dB below 16 kHz; Silent through the near-ultrasonic scenarios; Silent Robust through a crowd; odd-group packing
acoustic_live_tone_test.dart The sender’s tone schedule matches the generated audio sample for sample in every profile and every burst; the receiver’s FFT finds an 18 906 Hz tone within 8 Hz and every tone of a chord
acoustic_modem_test.dart WAV loopback; rateless early stop; noisy multi-burst 1.2 KB; automatic profile detection across both bands; fixed-profile isolation; PCM16 round trip; Silent hand-held loopback
reed_solomon_test.dart t errors for P = 4…32; bursts; parity-region errors; miscorrection < 5%; 2e + f = P for errors + erasures; 18 erasures beat 10-error limit
physical_codecs_test.dart Legacy FSK, Goertzel, stream decoder, vibration codec thresholds
protocol_test.dart CRC-32; packet encode/decode; corruption rejected
state_machine_test.dart Full valid path; illegal transitions throw
adaptive_engine_test.dart Scoring order; hysteresis cases; degradation threshold
broadcast_mode_test.dart Broadcast sends without ACKs; duplicate handling
simulation_integration_test.dart End-to-end scenario runs match byte-for-byte
image_envelope_test.dart JPEG → envelope → QR chunks → reassembled image
qr_optical_codec_test.dart Legacy APCS1 QR codec
sample_media_test.dart Sample catalog, titles, and every asset within its size budget
gallery_saver_test.dart Only non-empty photos/videos are saveable; unsupported hosts save nothing
physical_only_test.dart, platform_capabilities_test.dart, widget_test.dart Policy, platform labels, home screen smoke test

Helpers (not tests themselves): optical_camera_sim.dart (the camera model) and acoustic_channel_sim.dart (the room model).

19. Transfer-time planning tables

Estimates use the app’s own formulas: Light with Auto density and simulated capture yield, and Sound with ceil(1.25K)+2 frames. Real results depend on aim, light and room noise.

Light (Auto)

Content Envelope Block K Estimate
Text message (100 chars) 107 B 160 1 1 s
2 KB photo sample ≈2.1 KB 160 13 2 s
5 KB photo sample ≈5.1 KB 160 33 5 s
20 KB photo sample ≈20.3 KB 330 62 10 s
78 KB narrated video 80 KB 330 243 38 s
136 KB narrated video 139 KB 330 422 65 s

Sound

Content Envelope Rugged Safe Standard Fast Silent
“sos” 10 B K=1 → 4 fr → 12 s K=1 → 4 fr → 11 s K=1 → 4 fr → 9.5 s K=1 → 4 fr → 7 s K=1 → 4 fr → 19 s
100-char text 107 B K=4 → 7 fr → 21 s K=3 → 6 fr → 16 s K=2 → 5 fr → 12 s K=2 → 5 fr → 9 s K=5 → 9 fr → 43 s
2 KB photo ≈2.1 KB K=66 → 85 fr → 4.2 min K=44 → 57 fr → 2.5 min K=33 → 44 fr → 1.7 min K=33 → 44 fr → 1.3 min K=88 → 112 fr → 8.9 min

(fr = frames; each frame lasts the profile’s frame time from §10.7; Silent frames last 4.78 s.) These are the pessimistic ⌈1.25·K⌉ + 2 targets. When every frame lands, a receiver finishes after exactly K frames, so “sos” takes one frame: 2.4 s on Standard, 4.8 s on Silent.

Vibration

A 9-byte envelope (“hi”) becomes a 37-byte packet = 304 bits × ≈0.24 s ≈ 73 s in theory. The channel is experimental and real transfers often don’t complete (see section 11).

20. Known limitations and honest caveats

Physical limits:

No back-channel on Light and Sound:

Implementation notes found in code review (kept here so nobody is surprised):

Not yet verified on devices:

21. Troubleshooting

Symptom Fix
Receiver stays on SCAN Move to 15–25 cm; get the whole QR inside the brackets; tap the preview to focus; try 2×; tilt to remove glare; make sure both phones run the same build
DEC low but CAP fine Hold steadier (rest elbows); switch the sender to Safe; clean the lens; avoid a cracked area of the sender’s screen
Stuck at “x / K symbols” Keep streaming. If the sender stopped, tap Resume streaming; the receiver kept its progress
Sound: “too damaged” keeps rising Volume up, speaker pointed at the mic, move closer, or pick Rugged
Sound: nothing happens Tap Enable microphone; check the app’s microphone permission; the tone meter should move while the sender plays
Sound Silent: the Silent band meter stays near zero Media volume to maximum; swap the phones’ roles; if neither works, one phone can’t pass 19 kHz, so use Audible
Sender’s Sending now shows about 19 kHz but the receiver’s Hearing now shows — The 19 kHz tone isn’t reaching the receiver’s microphone: same fixes as the row above. If Hearing now shows the right kHz but nothing decodes, move closer, hold still, or pick a Robust or Rugged speed
Photo not in the Gallery Look for the album “Adaptive Comm”; tap Retry save on the received card; allow storage on Android ≤ 9
Video won’t play on iPhone Use the MP4 samples; iOS doesn’t play or save WebM
APK build fails downloading Gradle Set GRADLE_USER_HOME to your normal .gradle folder (see §3)

22. Project structure

lib/
├── main.dart                         App shell, theme, AppProvider, QR overlay
├── application/app_controller.dart   Central controller (send/receive/simulation)
├── core/
│   ├── chat/                         ChatMessage, APCM envelope codec
│   ├── channels/                     CommChannel, hardware optical/acoustic/vibration, web helpers
│   ├── engine/                       Adaptive decision engine
│   ├── logging/                      Structured logger
│   ├── manager/                      ChannelManager, TransferManager, state machine
│   ├── media/                        Image compression, sample media, Gallery saver
│   ├── performance/                  Strategy comparator
│   ├── physical/
│   │   ├── fountain/                 LT codec, APCF frames, QR bitmap, FountainQrModem
│   │   ├── acoustic/                 MT-FSK, frame sync, Reed-Solomon, frames, modem, profiles, filters, tone timeline, spectrum analyzer
│   │   ├── csk/                      Legacy colour-shift-keying modem
│   │   ├── optical_tx_profile.dart   Light profiles, Auto density, metrics
│   │   ├── qr_gray_frame.dart        Y-plane crop
│   │   ├── qr_decode_worker.dart     Background decode isolate
│   │   ├── qr_frame_decoder.dart     zxing2 decode sequence
│   │   └── physical_codecs.dart      Legacy FSK, Goertzel, vibration codec, WAV
│   ├── platform/                     Capabilities, UI state notifiers, brightness control
│   ├── protocol/                     24-byte packet header + CRC-32
│   ├── simulation/                   Medium, virtual links, scenarios, orchestrator
│   ├── transport/                    ReliableTransport
│   └── types/                        Enums, configs, metrics, constants
└── ui/
    ├── screens/                      Home, compose, transmit, receive, dev tools
    ├── widgets/                      QR view, HUDs, overlays, content view, panels
    ├── models/                       ComposePayload, PhysicalChannelMode
    └── theme/                        Responsive layout helpers
assets/samples/                       Demo photos and narrated explainer videos
tool/                                 Media, icon and social-preview generators; debug helpers
test/                                 Unit, integration and simulation tests (+ camera and room models)
android/ ios/ web/                    Platform projects (Android brightness channel in MainActivity.kt)
docs/                                 Full documentation set (index: docs/README.md)
.github/                              Issue forms and pull request template
PROJECT_REPORT.md                     Academic-style project report
CONTRIBUTING.md, CODE_OF_CONDUCT.md   How to contribute, and community rules
SECURITY.md                           How to report a vulnerability privately
CITATION.cff, LICENSE                 Citation metadata; MIT License
llms.txt                              Project summary and docs map for AI assistants
_config.yml, _includes/               Documentation website (GitHub Pages)

23. Glossary

Term Meaning
APCM The app’s message envelope (type + name + MIME + data)
APCF A Light-channel fountain frame inside one QR code
Fountain / LT code Rateless erasure code: endless encoded symbols, any ≈K of which rebuild the file
K Number of source blocks the file is split into
Symbol One encoded block (one QR code, or one acoustic frame)
Systematic The first K symbols are the original blocks themselves
Rank Number of independent equations collected; complete at rank = K
QR version Size class of a QR code (v8 = 49×49 modules … v25 = 117×117)
EC level L Lowest QR error-correction level (≈7%)
Module One black or white square of a QR code
MT-FSK Multi-tone frequency-shift keying: several tones at once, each picking 1 of 16 frequencies
Goertzel Efficient single-frequency power detector
FFT Fast Fourier transform: the power at every frequency bin at once. Used only for the live Hearing now readout, not for decoding
dBFS Decibels relative to full scale: 0 dBFS is the loudest sine the audio format can hold, so real levels are negative
Reed-Solomon Byte-level error-correcting code over GF(256)
Erasure A byte known to be unreliable. It costs half as much parity to fix as an unknown error
GMD Generalised minimum distance decoding: retry with the least reliable bytes erased
CRC Cyclic redundancy check, detects corrupted data
Goodput Useful payload bytes delivered per second
Hysteresis Requiring a clear margin before switching, to avoid flip-flopping

24. References

  1. H. Han et al., “RescQR: Enabling Reliable Data Recovery in Screen-Camera Communication System,” IEEE Transactions on Mobile Computing, 2023. doi:10.1109/TMC.2023.3277212
  2. P. Getreuer et al., “Ultrasonic Communication Using Consumer Hardware,” IEEE Transactions on Multimedia, 20(6), 2018. doi:10.1109/TMM.2017.2766049
  3. I. Hwang, J. Cho, S. Oh, “Privacy-Aware Communication for Smartphones Using Vibration,” IEEE RTCSA, 2012. doi:10.1109/RTCSA.2012.43
  4. T. Wang et al., “Streaming QR Codes – A Survey,” IEEE Access, 2024. doi:10.1109/ACCESS.2024.3461970
  5. M. Luby, “LT Codes,” Proc. 43rd IEEE FOCS, 2002.
  6. I. S. Reed, G. Solomon, “Polynomial Codes over Certain Finite Fields,” J. SIAM, 8(2), 1960.
  7. ISO/IEC 18004:2015, QR Code bar code symbology specification.
  8. RFC 9285, The Base45 Data Encoding (considered for a future string-safe QR transport).

For the academic write-up (abstract, objectives, literature survey), see PROJECT_REPORT.md. The full reference list, including libraries and tools, is in References.

Contributing

Bug reports, results from real phones, documentation fixes and code are all welcome. Start with CONTRIBUTING.md, which explains how to report issues and open pull requests, and then the developer guide for code style and the rules that keep two phones compatible. Everyone taking part is expected to follow the Code of Conduct.

Security

APCS doesn’t encrypt or authenticate transfers; treat everything you send as public. The threat model explains why and how encryption could be added. To report a vulnerability, follow the security policy and don’t open a public issue.

Citing this project

If you use APCS in academic work, please cite it using the metadata in CITATION.cff. On GitHub, select Cite this repository in the sidebar to get APA or BibTeX.

Acknowledgements

APCS builds on open-source Flutter packages, notably qr and zxing2 for QR codes, camera, record and audioplayers for the hardware, and sensors_plus and vibration for the Vibration channel. The full list is in section 17, and the exact versions are pinned in pubspec.yaml and pubspec.lock.

Author

Harsharaj S

GitHub: harsharaj-s LinkedIn: harsharajs

License

APCS is released under the MIT License. Copyright © 2026 Harsharaj S.

The MIT License covers this project’s own code and documentation only. Third-party packages listed in pubspec.yaml remain under their own licenses; the app’s About dialog lists them. The papers and standards in References are cited for background and don’t imply endorsement by their authors or publishers.

This site is open source. Improve this page.
